Reference · SC-16571

Conveyor rail with frame for punching bags

SportCom : Sole supplier Paris 2024
Tailor-made & adapted to your space
Optimal space-saving solution
Rail suitable for professional use
Allows the storage of several bags

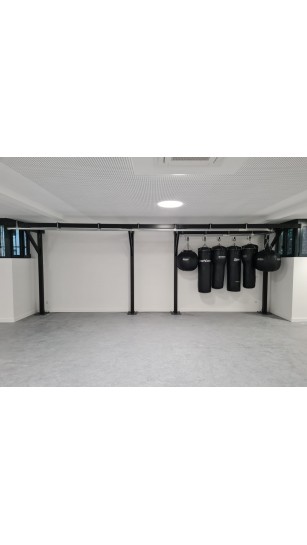

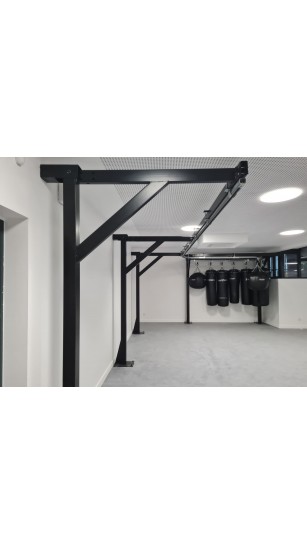

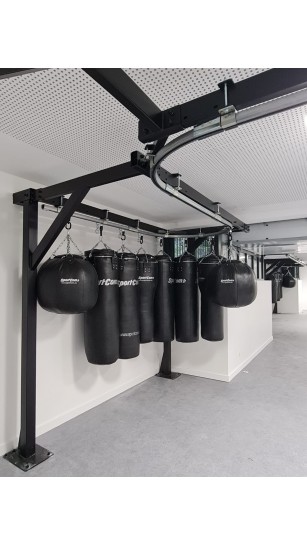

Our conveyor rail with frame for punching bags is the optimal solution for saving space in shared spaces. The rail is suspended on a supporting structure built with brackets that are fixed to the floor. This concept can be installed anywhere, and it is appropriate when the walls and frames are old or are not strong enough to bear the load. This concept is also recommended in industrial spaces with cladding. The floor must be made of concrete.

The structure requires a technical study to determine the location and number of brackets depending on the number of punching bags. The storage area is usually located at the end along the wall.

Description :

Tubular bracket, lenght (m) : 1,40
Maximum load (kg) : 300 each meters
Conveyor section with bags positioned according to need
Self-locking trolley with locking pin, patented product
Anti wear swivel ring
Complies with European standard Eurocode 3
Different choice colors
Many tailor-made configuration
Every project is first approved by our design office
Made in France
Recommended option: Dollamur Flexi-Post pole pads protection

Please note: installation of this product requires a concrete slab at least 20cm thick and to secure it to the wall with a sling system.

By accepting this type of rail, you are guaranteeing the nature of the fastening support (concrete slab, reinforced concrete, hourdis, IPN-type beams, wooden beams, etc.) and its ability to support the required dynamic load.

Discover our complete range of steel frames !
